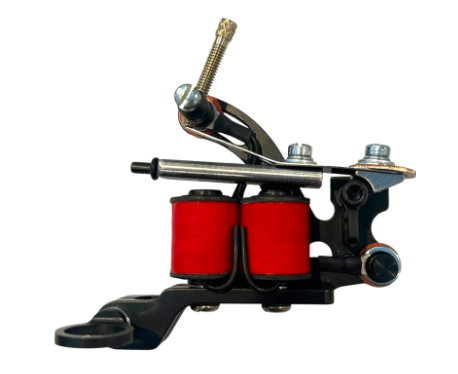

Hatchomatic Color Packer & Shader - Red Coils

The Hatchomatic color packer and shader in the red-coil configuration, built for smooth shading and dependable saturation with 7-27 magnums.

Specification Value

Type Traditional Coil Shader / Color Packer

Frame CNC-machined one-piece 1018 steel frame

Coils 1 in. 8-wrap red coils

Coil Wire 24-gauge copper wire

Core Material 5/16 in. 99.9% pure iron cores

Capacitor 22 uF

Springs 18-gauge spring steel

Contact Screw Solid silver

Armature Bar Specialized cut-out armature bar

Spring Deck Patented Hatchback adjustable spring tension system

Operating Voltage 5.2-7.5V

Needle Range 7-27 magnums

CPS 88-95

Duty Cycle 60-64%

Hit Medium-hard

Speed Medium-fast

Hand Built Miami, Florida, USA

Components American-made
