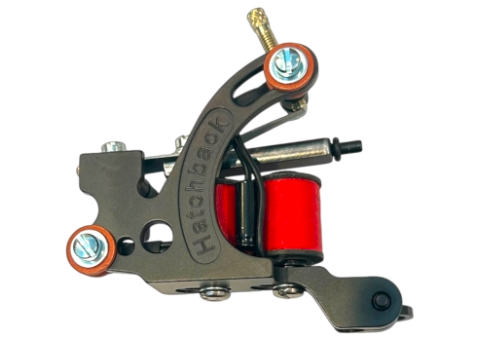

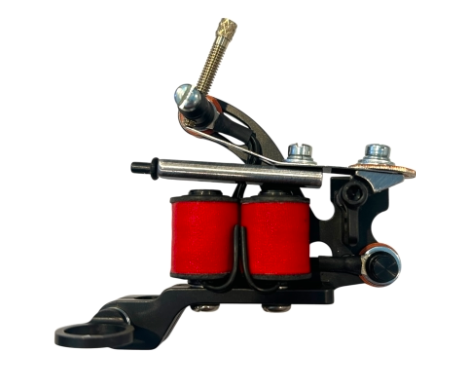

Shank Traditional Solid Bar Liner - Red Coils

A traditional solid-bar liner designed for 5-18 round liners. The solid armature bar provides momentum, stability, and a strong classic lining feel.

Specification Value

Type Traditional Coil Solid Bar Liner

Frame CNC-machined one-piece 1018 steel frame

Coils 1 in. 8-wrap red coils

Coil Wire 24-gauge copper wire

Core Material 5/16 in. 99.9% pure iron cores

Capacitor 47 uF

Springs 18-gauge spring steel

Contact Screw Solid silver

Armature Bar Traditional solid armature bar

Spring Deck Patented Hatchback adjustable spring tension system

Operating Voltage 5.2-7.5V

Needle Range 5-18 round liners

Hit Hard

Speed Consistent and powerful

Hand Built Miami, Florida, USA

Components American-made
