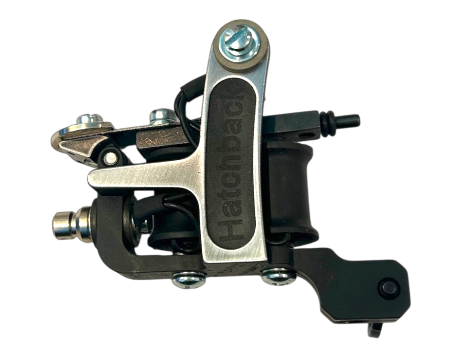

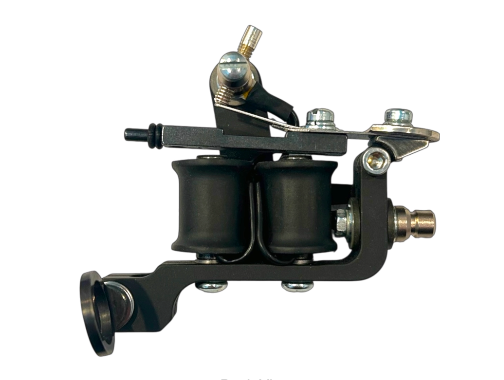

Spider Liner

Hatchback Irons original power liner, designed to drive 5-18 round liners with a hard, controlled hit for bold, clean, one-pass outlines.

Specification Value

Type Traditional Coil Liner

Frame CNC-machined one-piece 1018 steel frame

Coils 1 in. 8-wrap coils

Coil Wire 24-gauge copper wire

Core Material 5/16 in. 99.9% pure iron cores

Capacitor 47 uF

Springs 18-gauge spring steel

Contact Screw Solid silver

Armature Bar Specialized cut-out armature bar

Spring Deck Patented Hatchback adjustable spring tension system

Operating Voltage 5.2-7.5V

Needle Range 5-18 round liners

CPS 104-112

Duty Cycle 60-64%

Hit Hard

Speed Consistent and powerful

Hand Built Miami, Florida, USA

Components American-made
